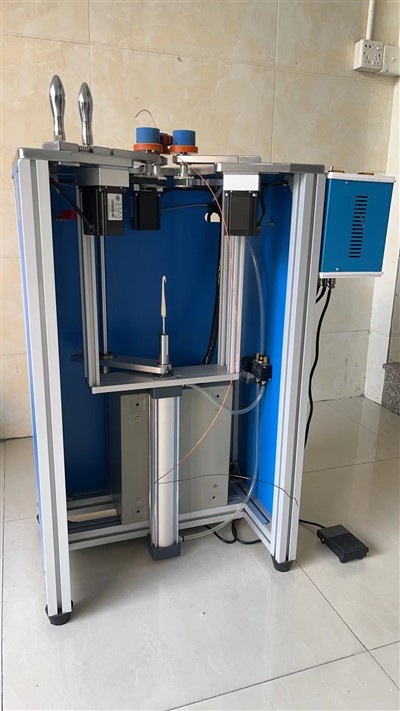

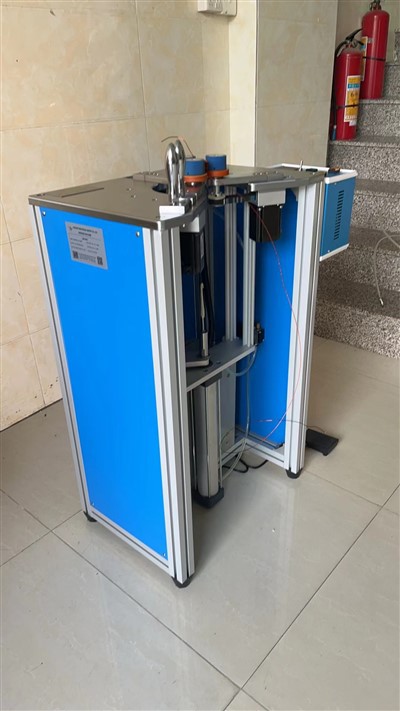

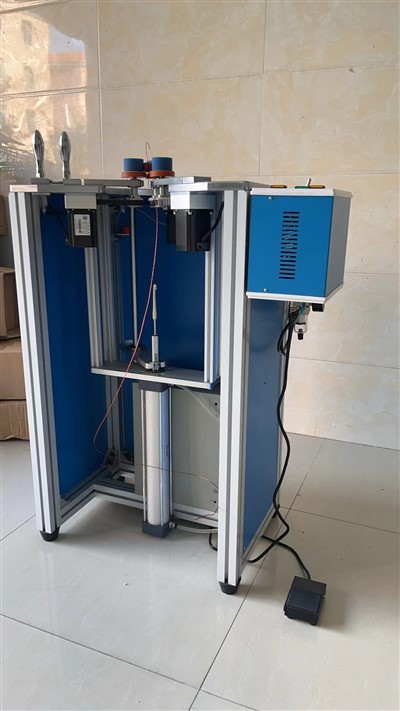

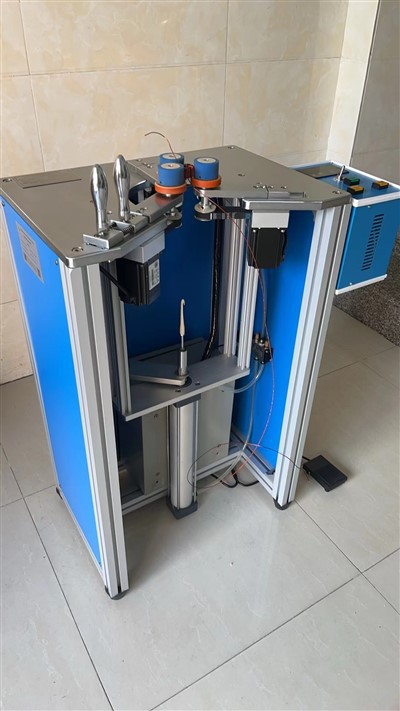

Hook Type Transformer Winding Machine

NAME:GW-9200 Hook-Type Toroidal winding machine

Machine parameters can be customized according to customer's products

FEATURES:

Hook Type Transformer Winding Machine has 4 standard hook size with specials available.
Air operated with air compressor for Hook Type Transformer Winding Machine
Hook Type Transformer Winding Machine (a.k.a. pull winding) is a useful technique for manufacturing toroidal products where the Inside Diameter (I.D.) of the toroid is too small for a conventional shuttle or magazine to pass through it.

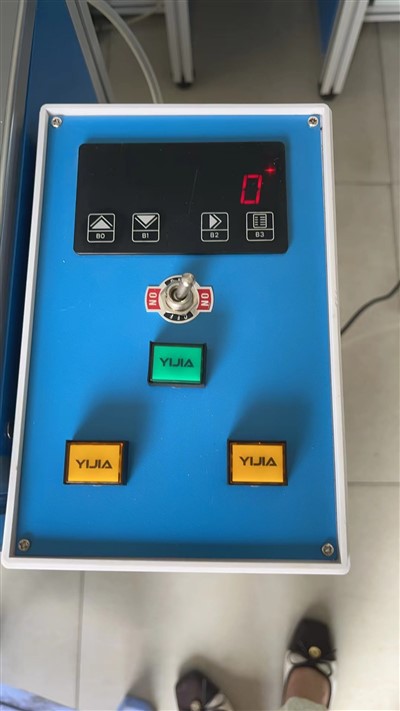

Programmable winding direction,winding returns range(Turns or Angle) and segment winding angle
Accurately wire spacing by programmable controller

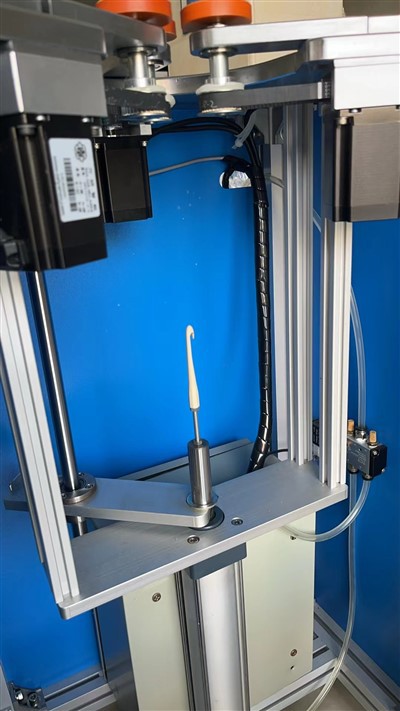

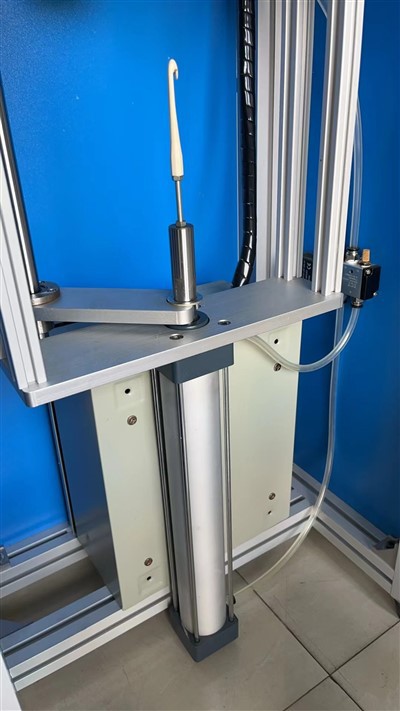

A pre-cut length of wire is pulled though the centre of the toroidal core by means of a hook driven by a pneumatic cylinder, the stroke length being adjustable by means of magnetic sensors.

ADVANTAGES:

Hook Type Transformer Winding Machine efficiency is high. The winding efficiency can be greatly improved by appropriately adjusting the brake to match the corresponding speed.
All the wire crossing parts can ensure that the wire is not damaged.
High versatility of parts and easy maintenance.
Complete varieties, wide wire diameter cross domain, can be used in one machine
The exchange line is good. Various types of wearing parts can be interchangeable

APPLICATION:

Toroid Winding Machine is the best suited to toroidal inductor, toroidal transformers,toroidal current transformers,toroidal coil, toroid choke coil, power inductors,UPS inductor,converter inductor and heavy toroidal core etc.

PRACTICAL APPLICATION :

TRAINNING CUSTOMER TO OPERATE WINDING MACHNE :
1.All service engineers with 10 years experience are gotten special technology training, who can deal with various breakdown problem.
2.Guide the user to use accurately and how to maintain the Hook Type Transformer Winding Machine.
Provide free consultation about production process technology of electronic products.
3.In order to guarantee the machine used normally, we'd have training on how to operate, use and maintain our product by English manual, video, guiding on line.

PACKAGING:

Packaging Material: Carton/Wooden case with foam inside.
1.General package(Paper carton or plastic bag): For small euipped parts for Hook Type Transformer Winding Machine, Package it with form and pack paper to guarantee unbroken during the transport.
2.Wooden case package: For larger scale Hook Type Transformer Winding Machine,we have special skilled carpenter, who would make the proper wooden case with exact thickness,density,length. The up arrow ↑marked on the outer wooden case. Buffer material would be put in the wooden case to prevent crack and shock.

OPTIONAL ACCESSORIES

FACTORY:
We-GREWIN INDUSTRIAL GROUP is expert in winding machines lines for 28Years. Our Grewin have ISO9001:2015, CE approvals,Machines'Patents,"high-tech enterprises"by the government.
